MT-Wave Wi-Fi
Interference Generator
The MT-Wave is a Wi-Fi interference generator supporting very good accurate dynamic power range of +20dBm to -30dBm irrespective of all the MCS rates and bandwidth. It generates maximum realistic congestion in the network using Wi-Fi7 test solutions, making it a versatile Wi-Fi client emulator as well.
16 μSec SIFS
Ultra-low inter-frame spacing
+20dBm to -30dBm
Accurate dynamic power range
Key Features
Unmatched control for realistic interference generation.
Tri-Band Support
Supports all 3 bands – 2.4GHz, 5GHz and 6GHz with most Wi-Fi channels.
Precise Power Control
Dynamic power range +20dBm to -30dBm with ±0.5dB accuracy.
Advanced Interference
Co-channel and Adjacent Channel interference generation with accurate control.
Low Latency
Inter-frame spacing as low as 16 μSec (equivalent to SIFS).
Configurable Parameters
Standard, Channel, Bandwidth, MCS rate, WMM priority, IFS, Power level and Payload.
Realistic Traffic
Emulation of realistic controlled traffic generation for Wi-Fi testing.
Precise Power Control
Extremely accurate power adjustments across all bands.
+20dBm
Maximum Output Power
High power interference testing
±0.5dB
Power Accuracy
Precise control for repeatable tests
-30dBm
Minimum Output Power
Low power sensitivity testing
Configurable Parameters
WMM Priorities
Voice
Highest priority for voice traffic
Video
High priority for video streaming
Best Effort
Standard priority for general data
Background
Lowest priority for background tasks
Technical Specifications
Test Results & Validation
Real-world performance data validating MT-Wave's interference generation capabilities across Wi-Fi 6E and Wi-Fi 7.

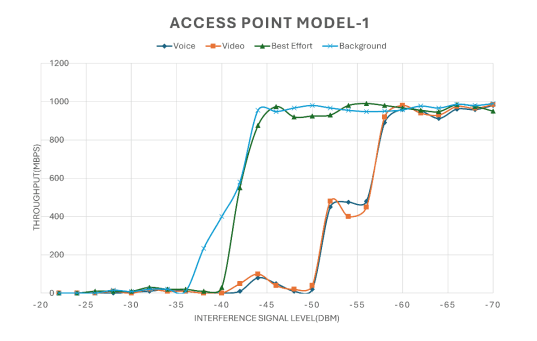

Wi-Fi 6E — Model 1

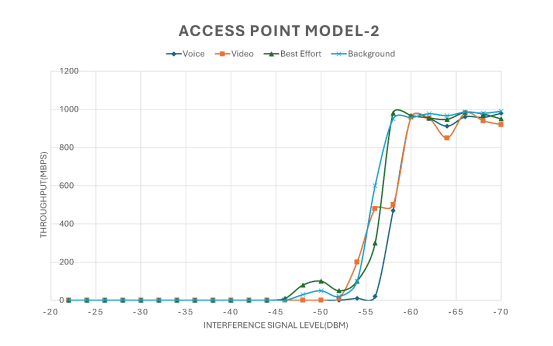

Wi-Fi 7 — Model 2
MT-Wave Testing with MT-C24
Comprehensive test results conducted using the MT-Wave interference generator in controlled environments.
Model-1 optimized for Wi-Fi 6E, while Model-2 extends validation to next-gen Wi-Fi 7 (802.11be) standards.
MT-C24 configured with programmable digital attenuators for precise signal control and repeatability.
Applications
Interference Testing
Generate controlled co-channel and adjacent channel interference to test performance.
MLO Scenarios
Perfect for Multi-link Operation testing scenarios with realistic traffic patterns.
Performance Analysis
Evaluate device behavior under various interference levels with precise power control.
