MT-C24 Wi-Fi 7
Client Emulator
The MT-C24 is a up to WiFi-7 Client Emulator designed for testing and validating next-generation up to Wi-Fi 7 (802.11be) devices. With 24 individual radios, this emulator provides comprehensive and scalable testing for Wi-Fi 7 networks, including Multi-Link Operation (MLO) and Extremely High Throughput (EHT).
24 Individual Radios
Comprehensive Wi-Fi 7 testing across all bands

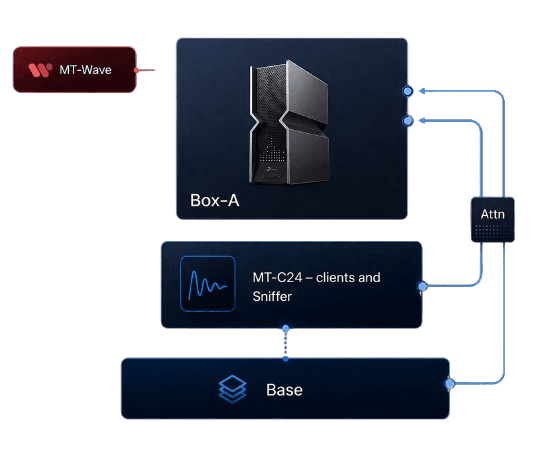

Setup 1
Setup 2
Setup 3

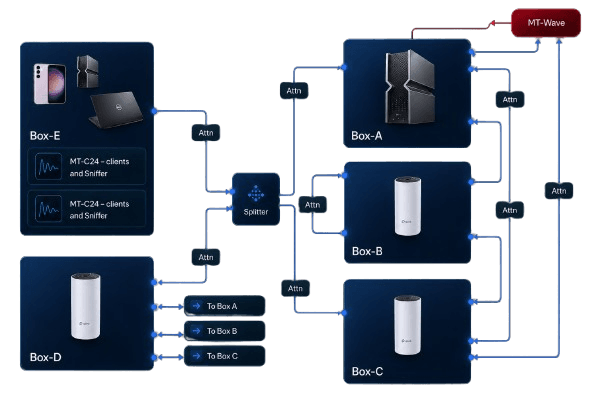

Setup 4
Key Features
Industry-leading specifications for rigorous testing.
Wi-Fi 7 Support
Up to Wi-Fi 7 with full backward compatibility to Wi-Fi 6/6E/5 and legacy standards.
Triband Capability
Operates simultaneously across 2.4GHz, 5GHz, and 6GHz frequency bands.
Complete Shielding
Fully shielded enclosure isolates the device under test from external RF interference.
320MHz Bandwidth
Supports the maximum Wi-Fi 7 channel bandwidth of 320MHz for peak throughput.
System Configurations
Scalable test systems tailored to your exact requirements.
MT-Sys-1
Performance Test System
- Rate vs Range
- Rate vs Orientation
- Multi-Link Operation
- Co-Channel Interference
- Adjacent Channel Interference
- Preamble Puncturing
- Multi-RU
- OFDMA
- Rx Sensitivity
- Throughput vs Channels
- Multi-Band Throughput
- Sniffing
MT-Sys-2
Performance Test System
- All MT-Sys-1 features
- Enhanced scalability
- Higher capacity testing
MT-Sys-3
Performance Test System
- All MT-Sys-1 features
- Maximum scalability
- Enterprise-grade testing
MT-Sys-4
TR-398, Roaming and Mesh
- 802.11kvr
- Band Steering
- Roaming
- Mixed Mode Clients
- Airtime Fairness
- Mesh
- Real Time Traffic
MT-Sys-5
Performance, Roaming & Mesh
- All MT-Sys-1 and MT-Sys-4 features
- Comprehensive testing suite
Technical Specifications

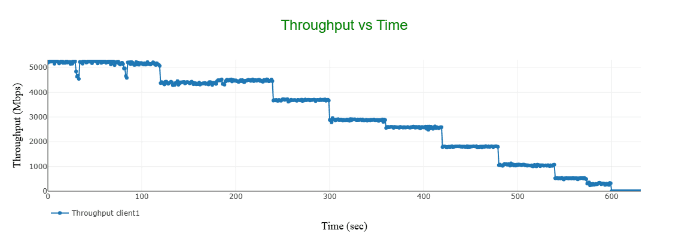

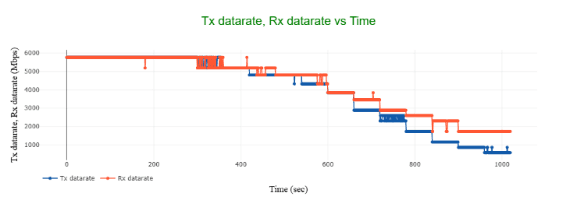

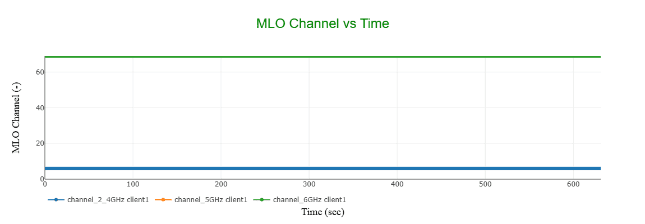

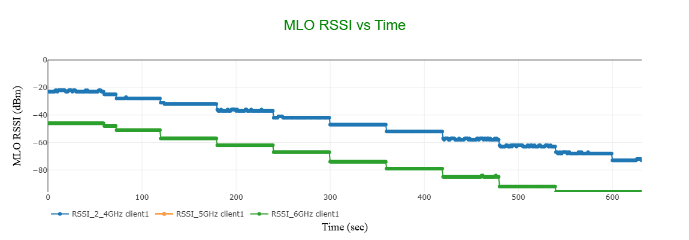

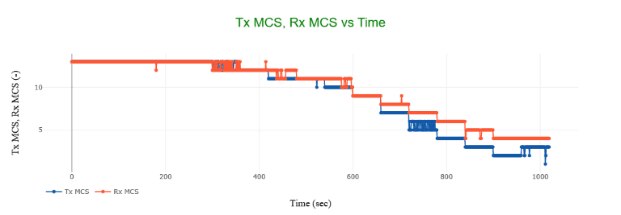

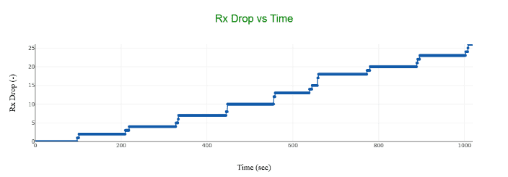

Performance Analysis
Comprehensive validation results demonstrating industry-leading performance across Wi-Fi 7 test scenarios.
Comprehensive Test Cases
- Multi-link Operation (MLO-EMLSR)
- Preamble Puncturing
- Mesh Specific Tests
- Throughput vs. Range Analysis
- Latency Distribution
Wi-Fi 7 AP Testing
Perform comprehensive validation of Wi-Fi 7 devices under various real-world scenarios.
MLO Validation
Ensure seamless MLO across multiple bands, optimizing bandwidth and latency.
Throughput Analysis
Evaluate device performance in terms of data rate and network efficiency.
Stress Testing
Simulate network congestion and device saturation for extreme conditions.
Ready to Test Wi-Fi 7?
Get comprehensive Wi-Fi 7 testing capabilities with the MT-C24 Client Emulator
